SPECIFICATIONS

Battery Included: No

Brand Name: MSTBODEN

Certification: CE

Hign-concerned Chemical: None

Measuring distance: 30mm-360mm

Model: KA200

Model Number: KA200-70-360-5u

Moving speed: 60 m / min

Operating temperature: 0-45

Origin: Mainland China

Output signal: TTL

Pitch: 0.02mm

Product Name: grating ruler linear encod

Resolution: 5um

Signal wire length: 2M metal hose

Voltage: DC5V





Product Brief：

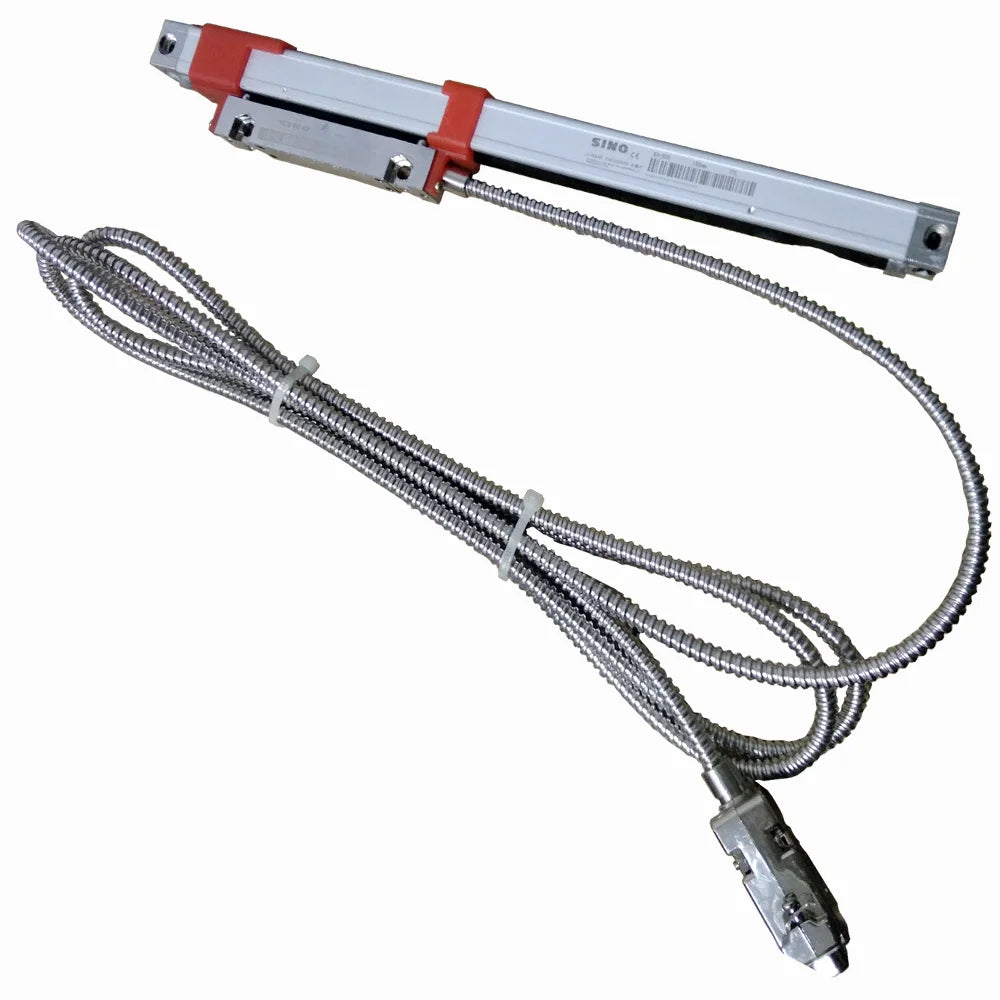

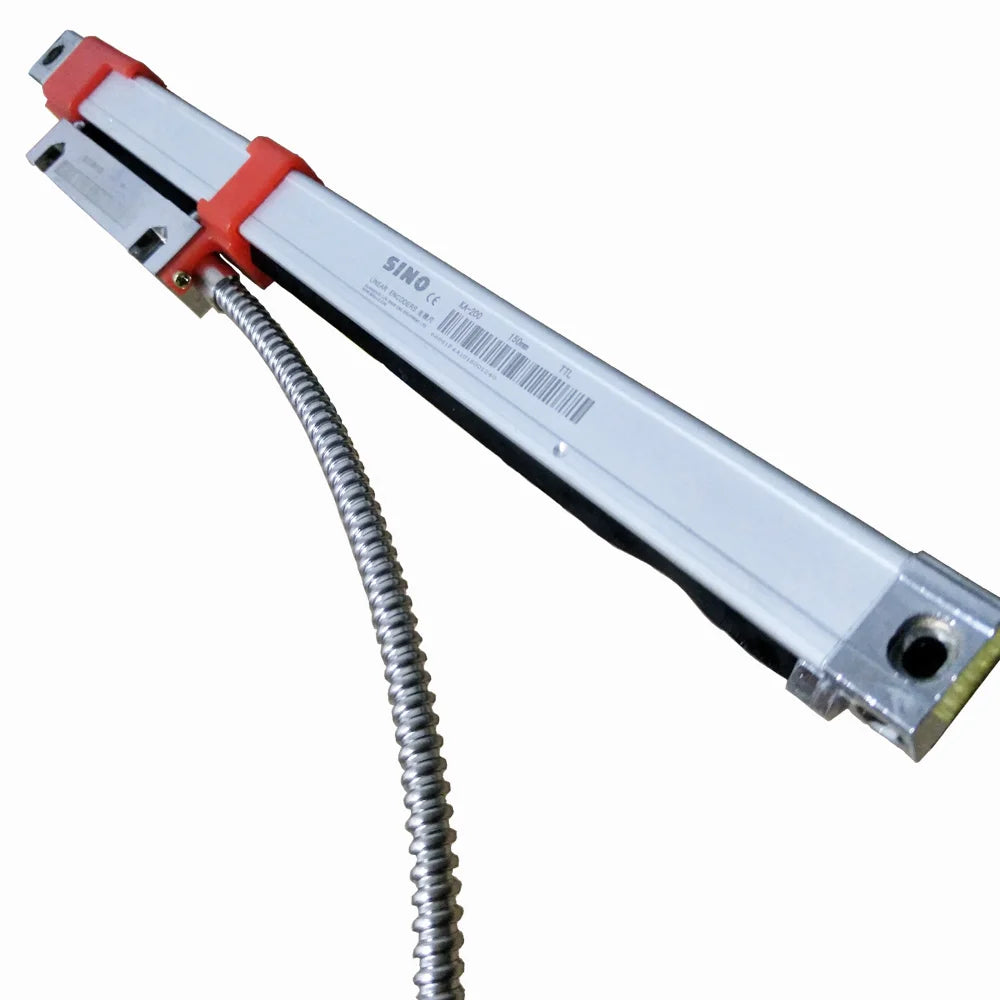

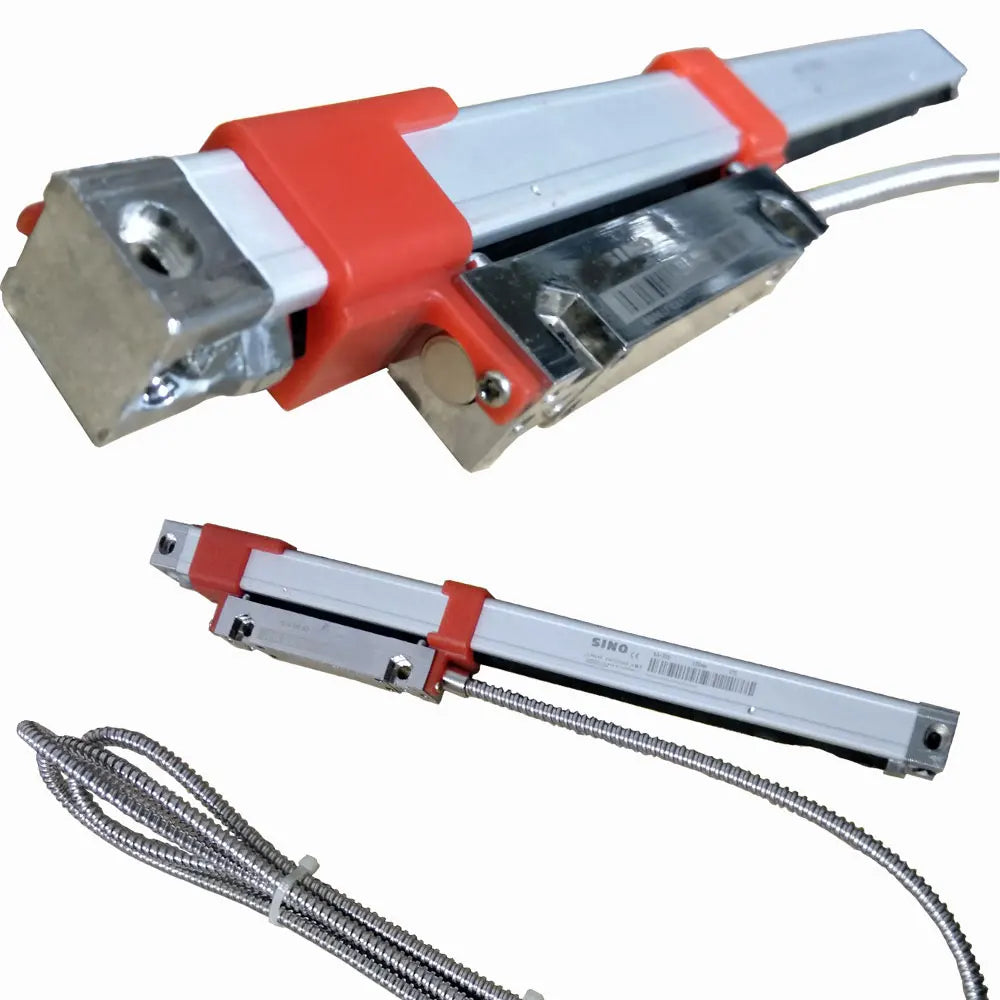

KA-200, a mini-encoder smaller than KA-500, is designed based on kA-500 by
optimizing the internal and external structure. It is suitable to the equipment on which
the installation is restricted and the space is even smaller. The length is 30-360mm.

1. technical parameters

1.1, pitch:

1.2, resolution:

1.3, accuracy:

1.4, range:

0.02 mm (50 line /mm)

5 m, 1 m, 0.5 M

+ 3 + 5, M + 15, m m/m (20 + 0.1 C)

30~3000mm

1.5, moving speed: high speed ruler 120 m/min (need to be customized)

Ordinary ruler 60m/min

1.6, power supply:

+5V + 5%, 80mA

1.7, the length of the cable: Standard 2M (special length can provide according to the needs of the user)

1.8, working temperature: 0~45

1.9, plug foot instructions:

1) suitable for: 9 core socket RS-422 signal output.



2) suitable for: 9 core socket TTL signal output.

FG: shielded metal case
