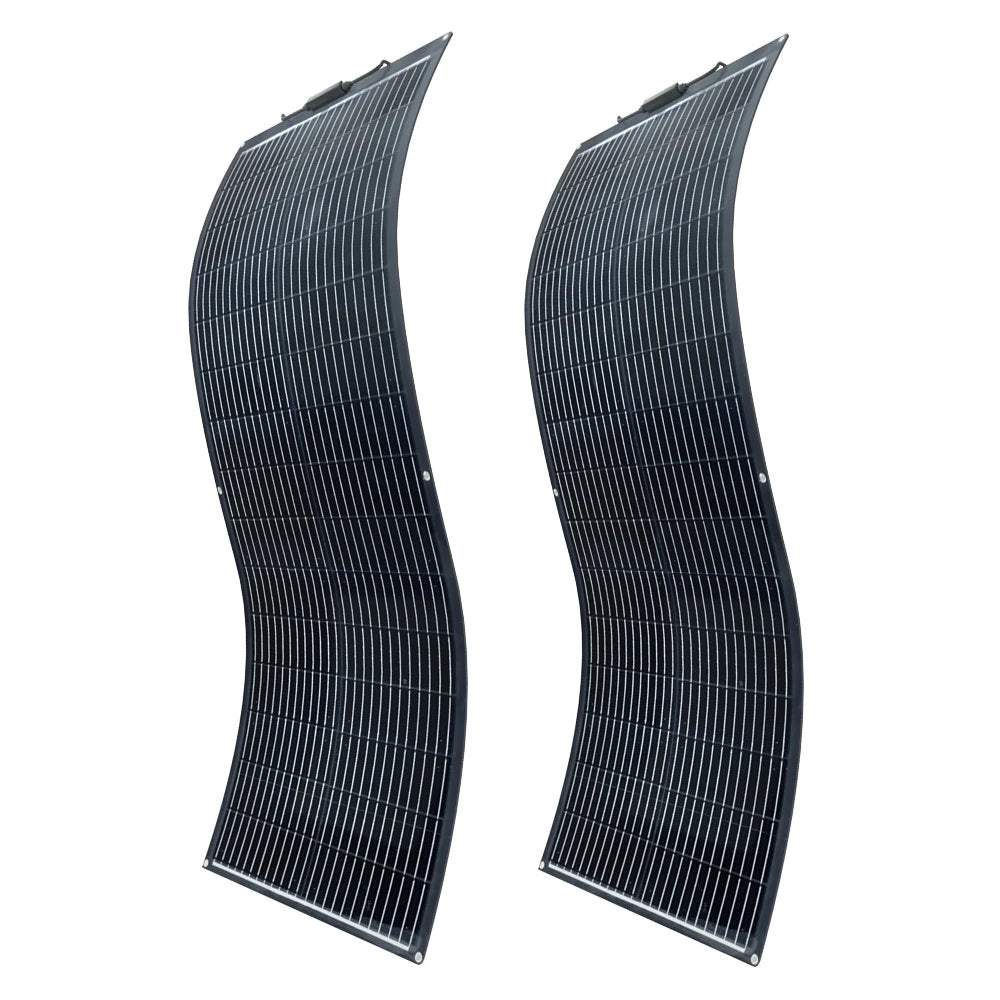

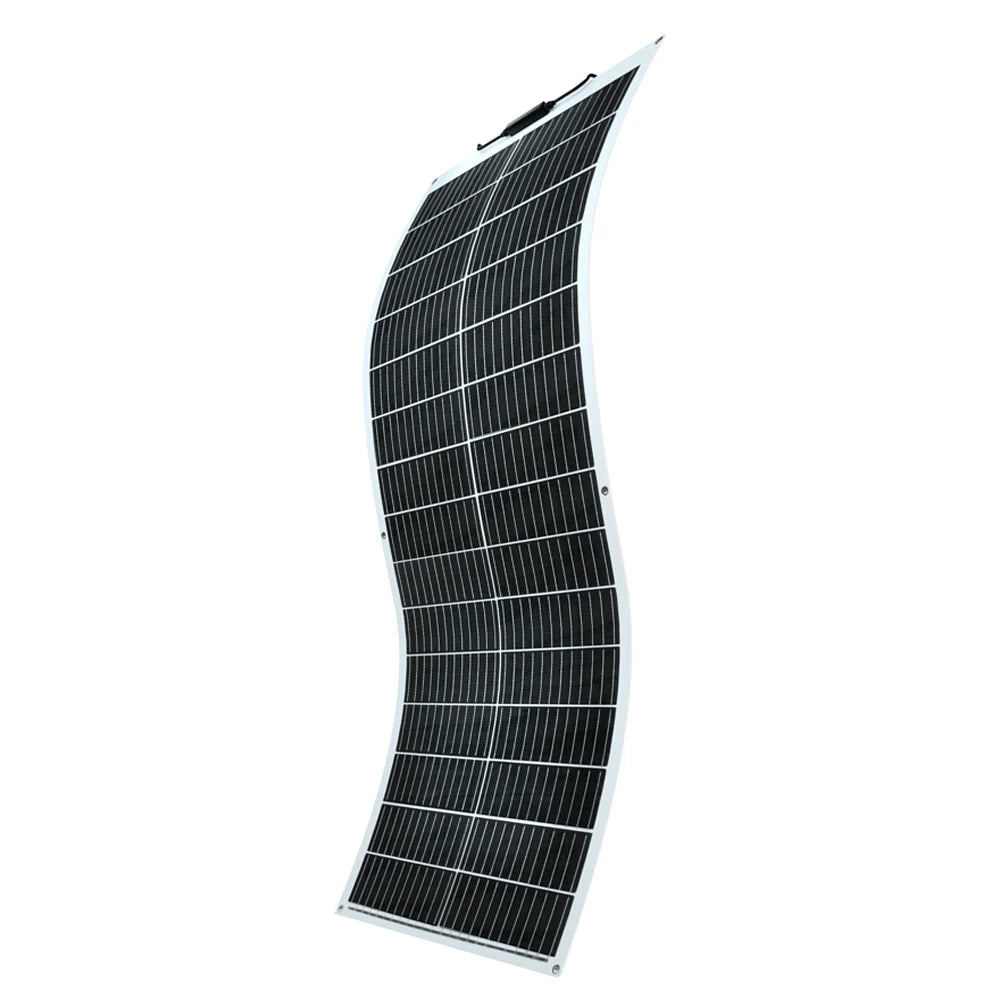

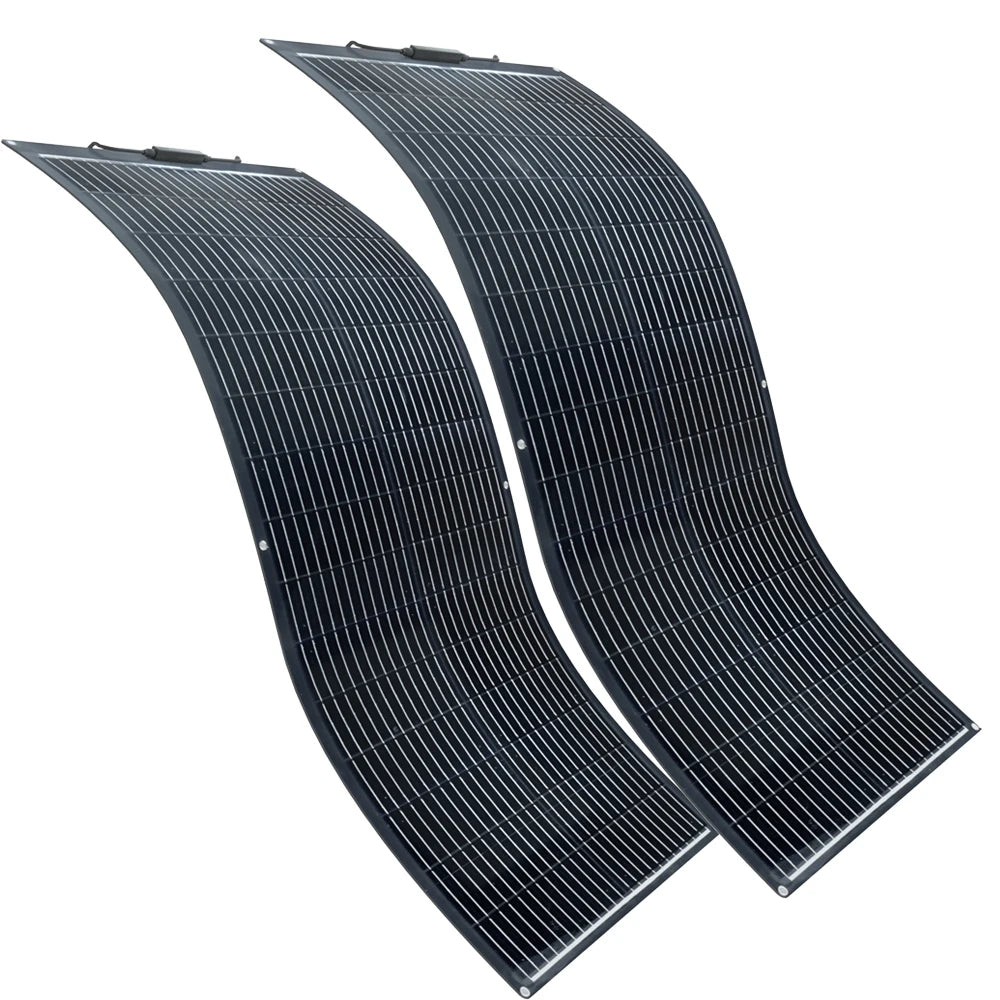

Xinpuguang Solar panel 200W / 100W Solar Panels module 100 Watt Or 200 Watt Monocrystalline Cell For Car Boat Home RV charger battery Charging

About this item

Wide Application: 100W is a semi-flexible high-performance solar cell that is ideally suited both as a solar module for the mobile home and especially for marine use on sailing yachts, motor yachts and other types of boats.
Maximum Stability: Our semi-flexible solar modules Thanks to the integrated bypass diodes in the junction box.
Waterproof: The junction box and diodes have been pre-installed and are sealed and waterproof. The solar panel is supplied with a 90cm solar cable with which several panels can be connected in series or in parallel.
Anti-Backflow: Built-in blocking diode to prevent battery discharge at night ,and prevent flexible panel from current backflow to damage circuit board in cells.
Easy Construction: Thanks to the junction box on the front, the modules can be glued to almost any surface.

16.5V 100W Flexible solar panel Specification

Maximum power(Pmax) 100 Watt

Maximum system voltage 700V DC

Open circuit voltage(Voc) 19.8V

Short circuit current(Isc) 6.66A

Maximum power voltage(Vmp) 16.5V

Maximum power current(Imp) 6.06A

Weight 1.8kg/4.0lb

Size 1140X460X2.5mm / 44.88X18.11X0.098 inch
Cable length 90cm/10FT
Operating Temperature -45℃ to 80℃ /-49℉ to 176℉

Operating temperature(NOCT) 45 plus or minus 2 Celsius system

STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5

Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.

1 Years Warranty, 10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point.

Solar panels need to be in the sun to have output, and depending on the light, temperature, the output power will vary

Features:

1.[Excellent performance] Using high-quality monocrystalline silicon cells, high-efficiency monocrystalline silicon solar cells provide good performance even in low light conditions
2.[Flexible] This flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.
3.[Practicality] Light energy converts electrical energy and has strong practicability. It is a good supplement for power shortages and places where the city power cannot reach, such as mountains, marine, deserts, etc.
4.[Nice Details] The water resistant flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof.
5.[Easy Installation]The solar panel has 6 grommet mounting holes are available to attach fasteners,and can also be installed with silicone and adhesive tape. 12-month guarantee service.

Packing list

1 x 100W 16.5V Solar Panel (100W)

OR

2 x 100W 16.5V Solar Panel (200W)
