Notice:

This device have to work with Zigbee gateway!!!!

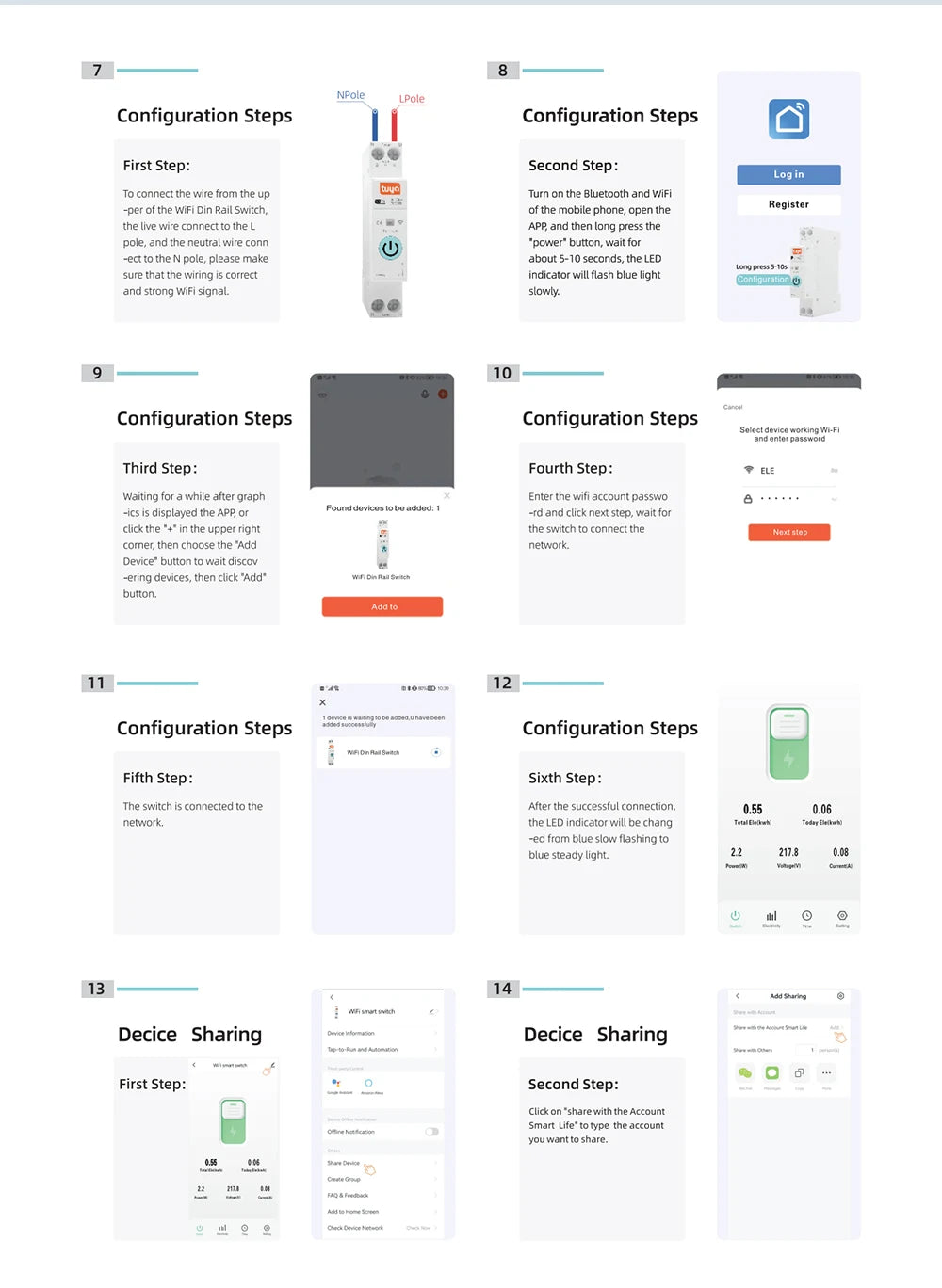

Wiring: Power must enter from the top and must be Live line + Neutral Line (L+N). Live line + Live line (L+L) cannot be used.

APP: Smartlife, TUYA

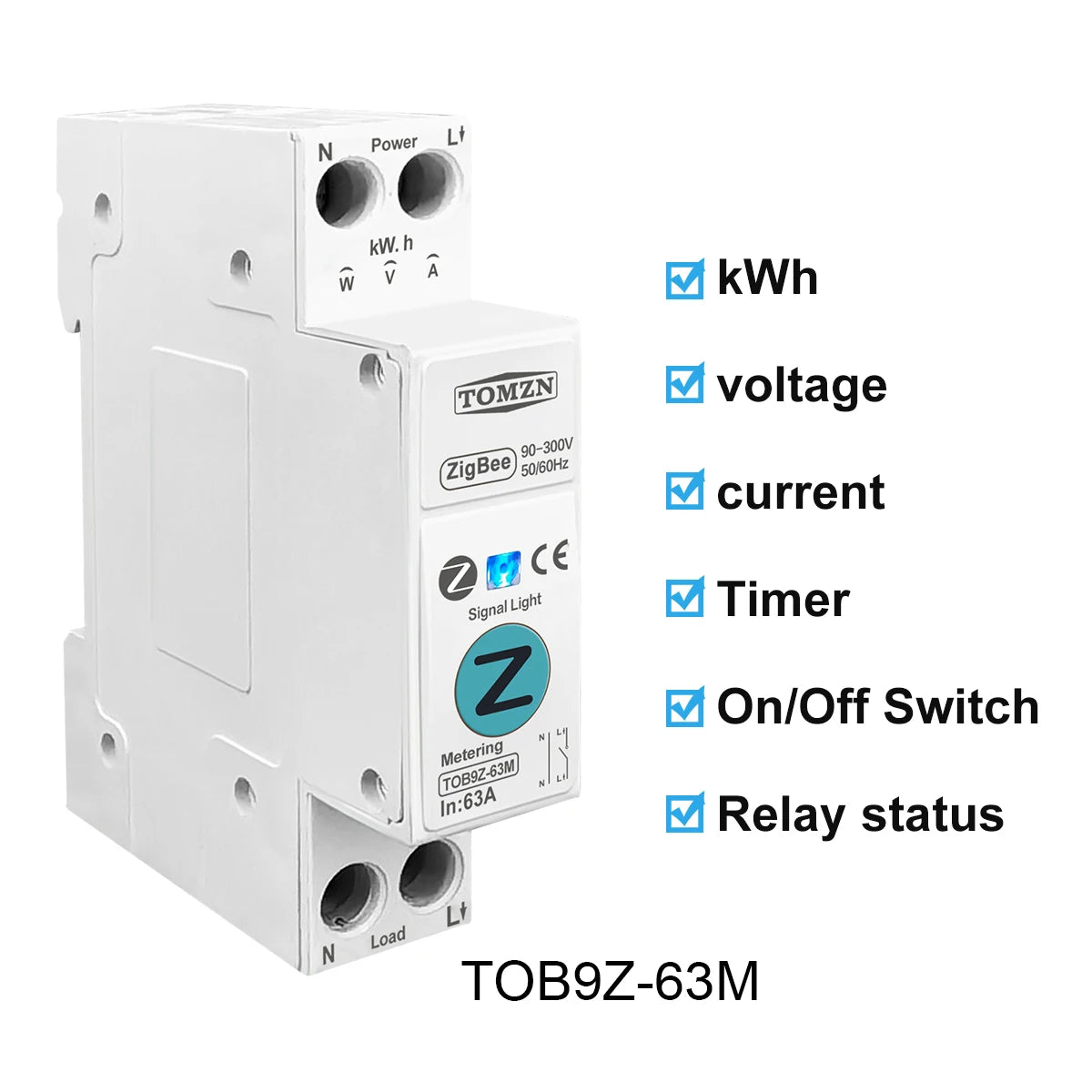

TOB9Z-63M Metering

TOB9Z-63T No metering

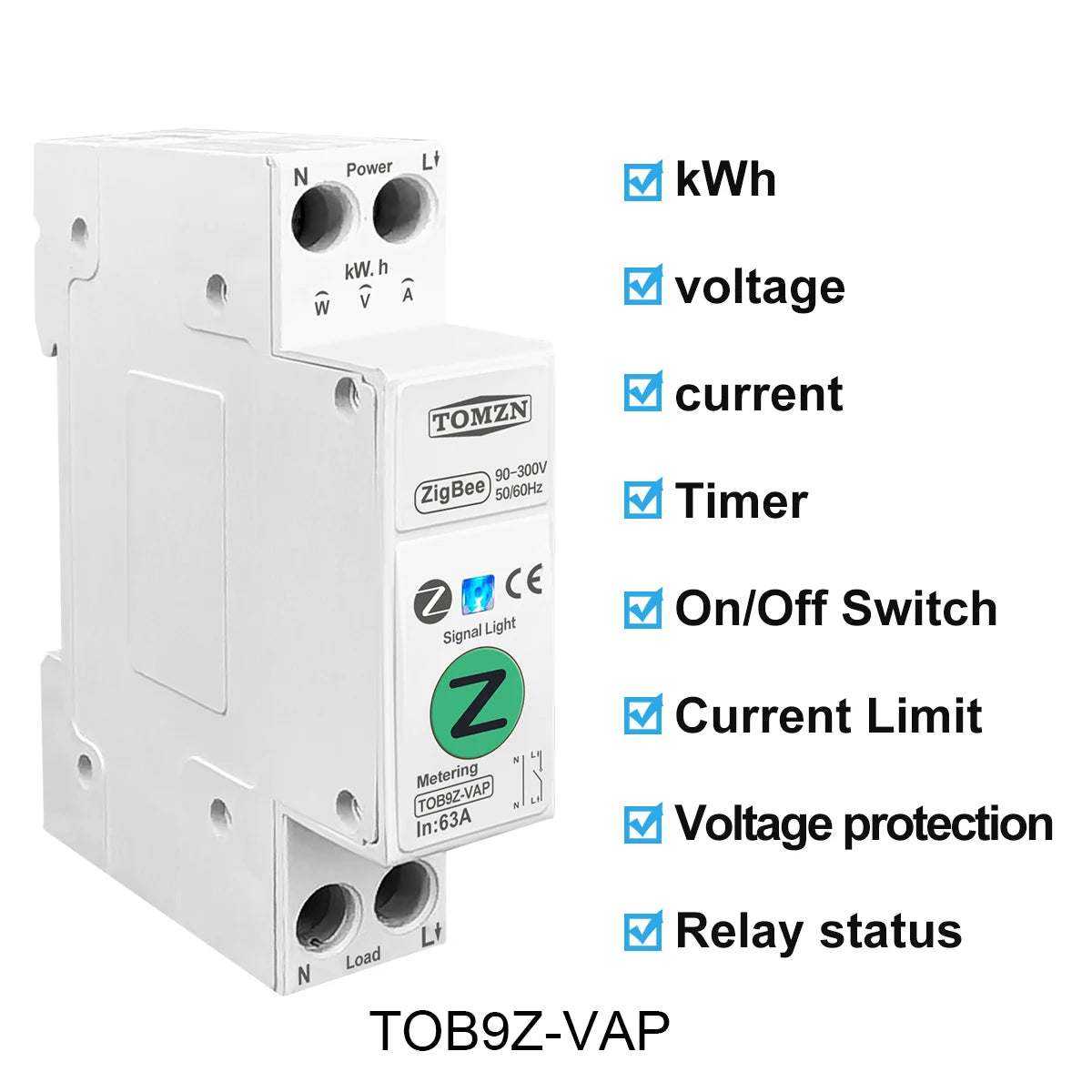

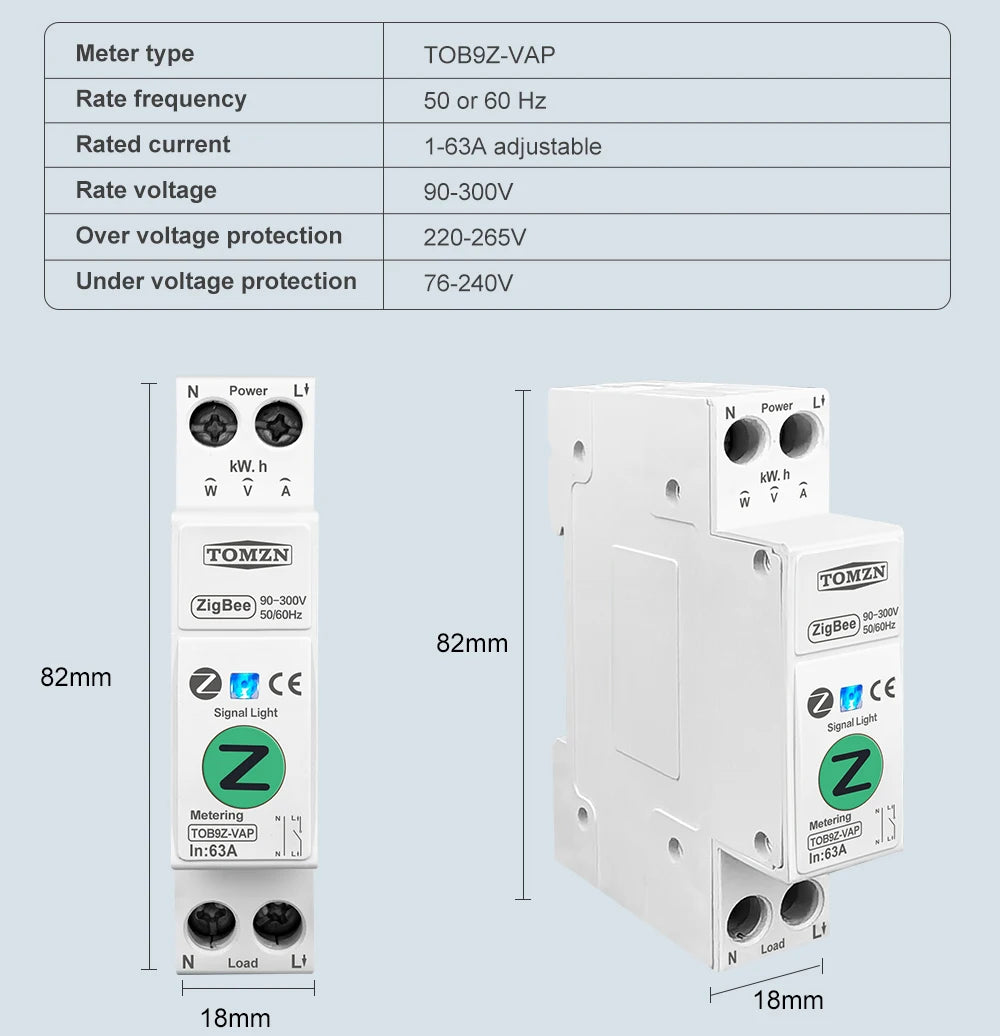

TOB9Z-VAP Metering, voltage currrent and power protection

Function:

TOB9Z-63T Function	TOB9Z-63M Function	TOB9Z-VAP Function
Remote on/off	Remote on/off	Remote on/off
Time control function	Time control function	Time control function
Relay last status	Relay last status	Relay last status
	Voltmeter	Voltmeter
	Ammeter	Ammeter
	Power meter	Power meter
	Active power	Active power
		Over voltage protection
		Under voltage protection
		Over current protection
		Over power protection

Feature

1.Remote control at anytime from anywhere

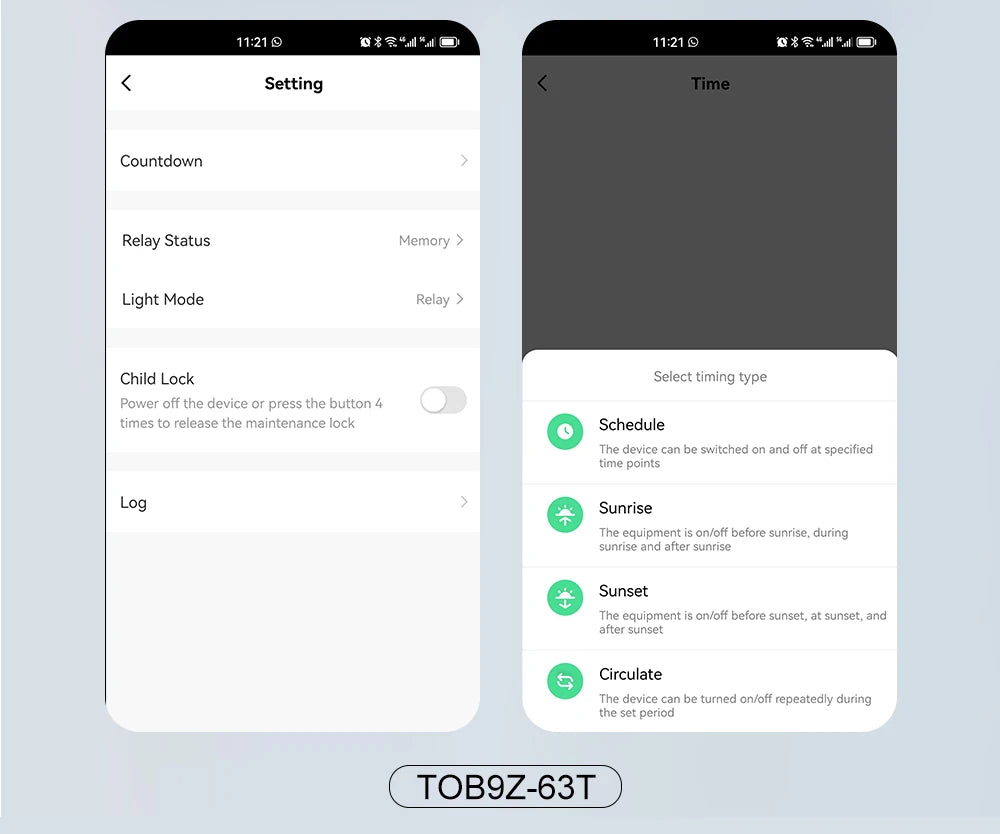

2.Schedule/Timer/loop timer

3.Energy monitoring(TOB9Z-63M, TOBZ9-63VAP)

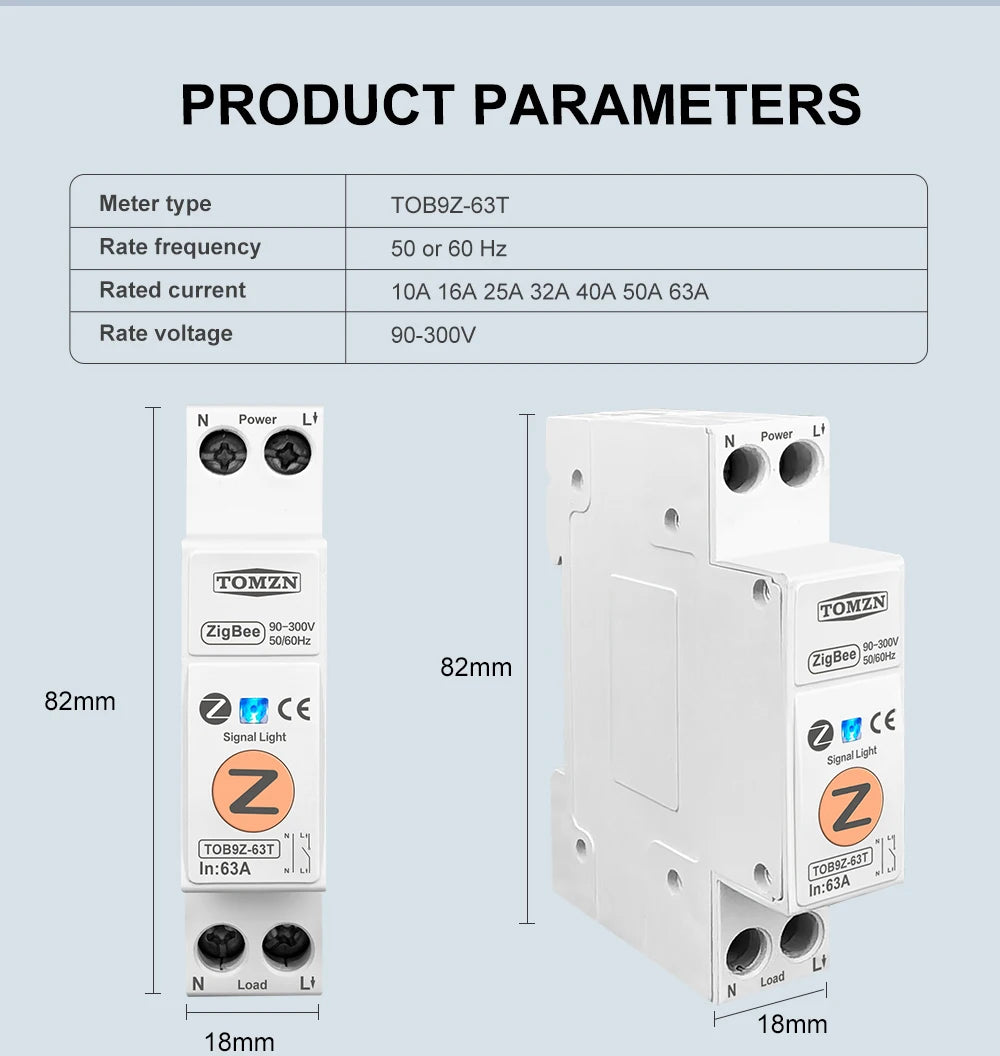

4. Working Voltage:AC 90-300V 50/60Hz

5.Mechanical Life: Over 100000 Times

6.Working Temperature: -25℃-70℃

Note:This meter Only supports 2.4G Wireless Network,  NOT for 5G
