SPECIFICATIONS

Application: indoor/outdoor

Brand Name: ANNKE

Customized support: Online Technical Support

Data Storage Options: DVR,dvr

Function: Built-In Mic,One-Way Audio

IR Distance: IR 30m, white Light 20m

Lens: 2.8mm,2.8mm

Model Number: CR1CW*4

Place of Origin: Guangdong, China

Power Supply: DC12V

Product name: Indoor Outdoor CCTV Camera

Sensor: CMOS,3K CMOS Image sensor

Special Features: One-Way Audio,Waterproof / Weatherproof,Motion Detection,Night Vision

Style: Dome Camera

Support: One-way audio

Video Compression Format: H.265

Warranty: 2 Years

Product Description

Specification

Image sensor	3K CMOS Image sensor
Video Resolution	2960 (H) × 1665 (V) (16:9)
Signal System	PAL/NTSC
Frame Rate	TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC
Lens	2.8mm
Min.Illumination	Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Angle of View	Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
Supplement Light type	1 white Light & 1 EXIR
Supplement Light Range	IR : Up to 30 m, white Light : Up to 20 m
Supplement Light Mode	IR light works normally, and it switches to white light when human or vehicle are detected at night.
Wide Dynamic Range	Digital WDR
Audio	Built-in mic
IR Cut Filter	Yes
Video Output	BNC, switchable TVI/AHD/CVI/CVBS
Housing	Matal & Plastic
Color	White
Operating Power	12 VDC ± 25%
Consumption	Max. 2.9 W
Operating Temperature	-40 °F – 140 °F /-40 °C – 60 °C
Indoor/Outdoor	Indoor/Outdoor

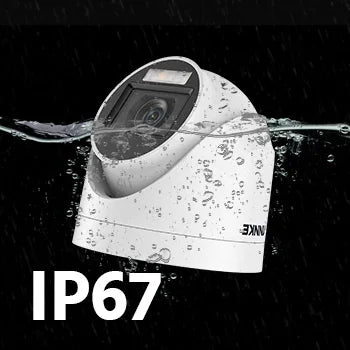

Weatherproof Rating	IP67
Dimension (L x W x H)	80 mm × Ø 85.1 mm (3.1" × Ø 3.4")
Weight	Approx. 300 g (0.66 lb.)
